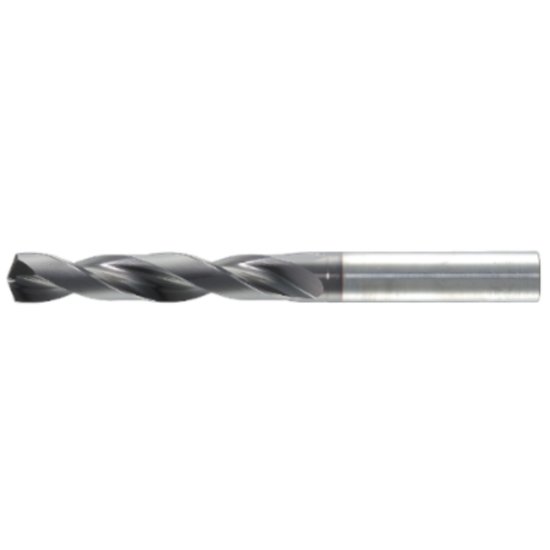

Picture of Widin PPD09525 9.525 - 3/8 Dia 140° Point 2 Flute 4XD Drill Carbide Non Coolant

Widin PPD09525 9.525 - 3/8 Dia 140° Point 2 Flute 4XD Drill Carbide Non Coolant

Part Number: WIDPPD09525
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1145191

Description

WIDIN PPD09525 Carbide Drill 9.525 - 3/8 DIA 140° Point 2 Flute 4XD Drill Solid TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 3.5039 89.00MM
Flute Length 1.3780 35.00MM
Dia Deep 4.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.3937 10.00MM
Tool Dia 0.3750 9.53MM - 3/8
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.3750 9.53MM - 3/8
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
