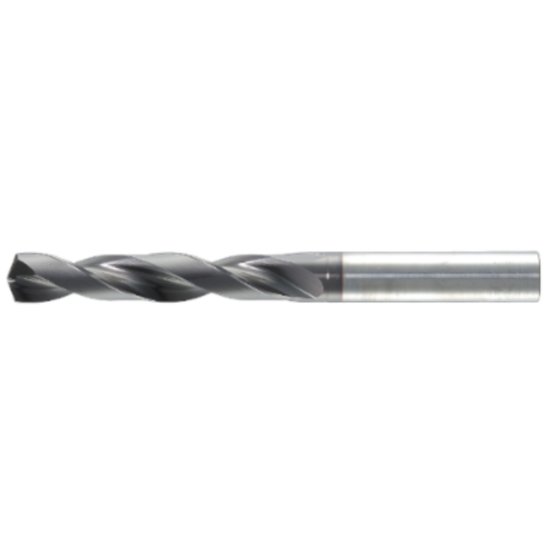

Picture of Widin PPD0635 6.35 - 1/4 Dia 140° Point 2 Flute 4XD Drill Carbide Non Coolant

Widin PPD0635 6.35 - 1/4 Dia 140° Point 2 Flute 4XD Drill Carbide Non Coolant

Part Number: WIDPPD0635
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1145189

Description

WIDIN PPD0635 Carbide Drill 6.35 - 1/4 DIA 140° Point 2 Flute 4XD Drill Solid TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 3.1102 79.00MM
Flute Length 0.9060 23.01MM
Dia Deep 4.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.3150 8.00MM
Tool Dia 0.2500 6.35MM - 1/4 - E
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.2500 6.35MM - 1/4 - E
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
