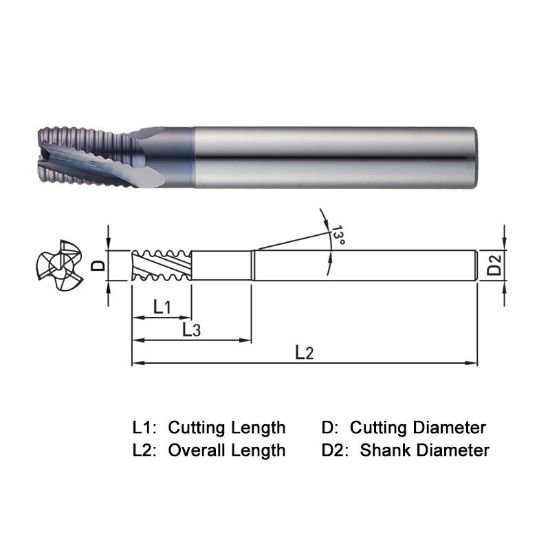

Picture of Widin PK503140 Dia 14mm SH 0.5512 LOC 0.8268 OAL3.2677 End Mill Carbide AlTiN Single End Square Sharp Z-ClassIC

Widin PK503140 Dia 14mm SH 0.5512 LOC 0.8268 OAL3.2677 End Mill Carbide AlTiN Single End Square Sharp Z-ClassIC

Part Number: WIDPK503140
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$175.02
SKU: 1220549

Description

WIDIN End Mill Carbide AlTiN Square Sharp Flutes 3 Single End Z-CLASSIC Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Square
Cutter Style Carbide Rougher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.2677 83.00MM
Shank/Pilot Dia 0.5512 14.00MM
Flutes/Inserts 3
Tool Dia 0.5512 14.00MM
Length Of Cut 0.8268 21.00MM
Neck Length 1.3780 35.00MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Gray Iron, <55HRC Steel, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
