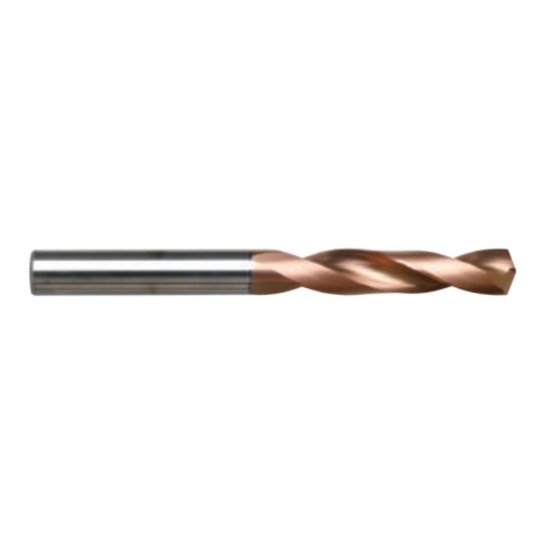

Picture of Widin PI503F096 9.60mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Widin PI503F096 9.60mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Part Number: WIDPI503F096
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$110.70
SKU: 1143010

Description

WIDIN PI503F096 Carbide Drill 9.60MM DIA 140° Point 2 Flute 3XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 3.5039 89.00MM
Flute Length 1.3780 35.00MM
Dia Deep 3.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.3937 10.00MM
Tool Dia 0.3780 9.60MM
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.3780 9.60MM
Cut Rating <60HRC Steel, Ductile Iron, Grey Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
