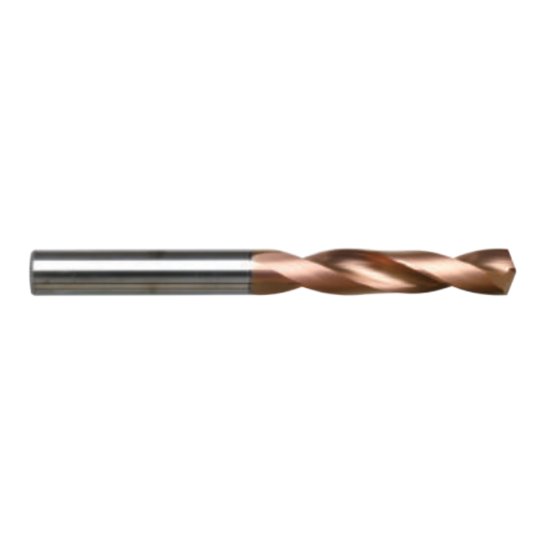

Picture of Widin PI503A105 10.50mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Widin PI503A105 10.50mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Part Number: WIDPI503A105
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$132.83
SKU: 1142870

Description

WIDIN PI503A105 Carbide Drill 10.50MM DIA 140° Point 2 Flute 3XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.0157 102.00MM
Flute Length 1.5750 40.01MM
Dia Deep 3.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.4724 12.00MM
Tool Dia 0.4133 10.50MM
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.4133 10.50MM - Z
Cut Rating <60HRC Steel, Ductile Iron, Grey Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
