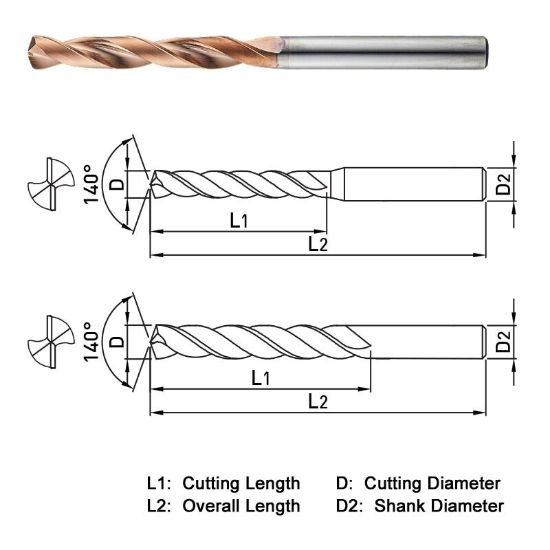

Picture of Widin PF50517463 17.463mm Dia 140° Point 2 Flute 5XD Drill Carbide Non Coolant

Widin PF50517463 17.463mm Dia 140° Point 2 Flute 5XD Drill Carbide Non Coolant

Part Number: WIDPF50517463
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$366.83
SKU: 1144878

Description

WIDIN PF50517463 Carbide Drill 17.463MM DIA 140° Point 2 Flute 5XD Drill Solid TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 6.1811 157.00MM
Flute Length 3.9370 100.00MM
Dia Deep 5.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.7087 18.00MM
Tool Dia 0.6875 17.46MM - 11/16
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.6875 17.46MM - 11/16
Cut Rating <60HRC Steel, Ductile Iron, Grey Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
