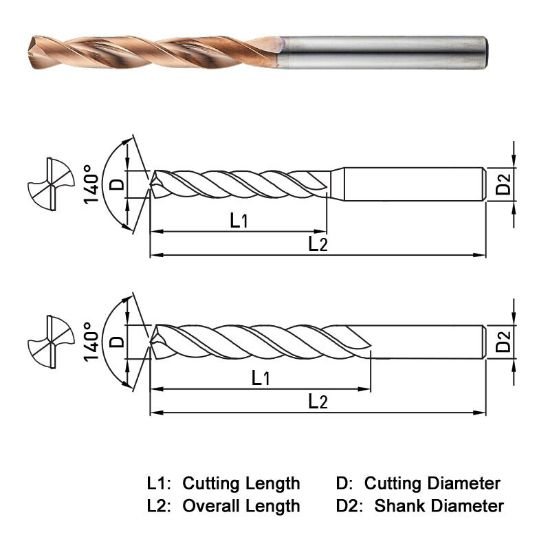

Widin PF505156 15.60mm Dia 140° Point 2 Flute 5XD Drill

Part Number: WIDPF505156

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1144866
$464.12
WIDIN PF505156 Carbide Drill 15.60MM DIA 140° POINT 2 FLUTE 5XD DRILL Solid TiAlN + HH Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Grey Iron, <60HRC Steel, Ductile Iron
Coating TiAlN + HH
Mach Side Connection Size 0.6299 16.00MM
Overall Length 5.9843 152.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 2
Tool Dia 0.6142 15.60MM
Type Of Tool Drill
Included Angle 140°
Flute Length 3.5430 89.99MM
Cut Dia Min 0.6142 15.60MM
Dia Deep 5.0x Dia
