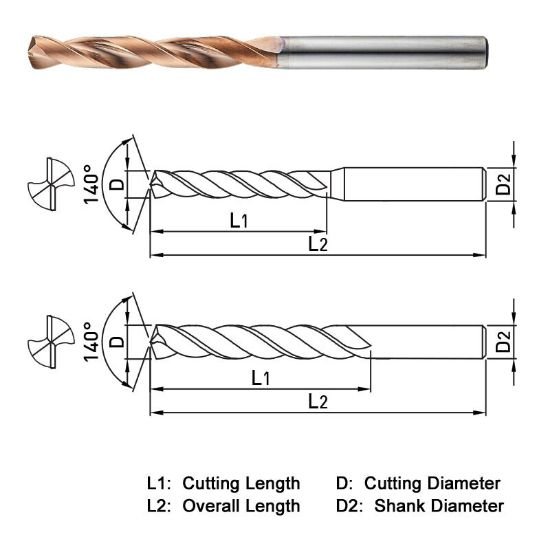

Picture of Widin PF50514288 14.288mm Dia 140° Point 2 Flute 5XD Drill Carbide Non Coolant

Widin PF50514288 14.288mm Dia 140° Point 2 Flute 5XD Drill Carbide Non Coolant

Part Number: WIDPF50514288
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$254.76
SKU: 1144852

Description

WIDIN PF50514288 Carbide Drill 14.288MM DIA 140° Point 2 Flute 5XD Drill Solid TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 5.6299 143.00MM
Flute Length 3.2680 83.01MM
Dia Deep 5.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.5906 15.00MM
Tool Dia 0.5625 14.29MM - 9/16
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.5625 14.29MM - 9/16
Cut Rating <60HRC Steel, Ductile Iron, Grey Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
