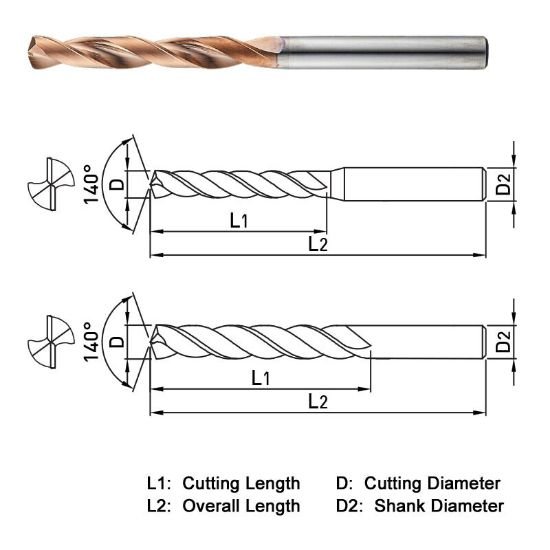

Picture of Widin PF50511908 11.908mm Dia 140° Point 2 Flute 5XD Drill Carbide Non Coolant

Widin PF50511908 11.908mm Dia 140° Point 2 Flute 5XD Drill Carbide Non Coolant

Part Number: WIDPF50511908
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$130.91
SKU: 1144824

Description

WIDIN PF50511908 Carbide Drill 11.908MM DIA 140° Point 2 Flute 5XD Drill Solid TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.7638 121.00MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 2
Tool Dia 0.4688 11.91MM - 15/32
Flute Length 2.7950 70.99MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Stainless Steel, <60HRC Steel, Ductile Iron, Grey Iron
Cut Dia Min 0.4688 11.91MM - 15/32
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN + HH
