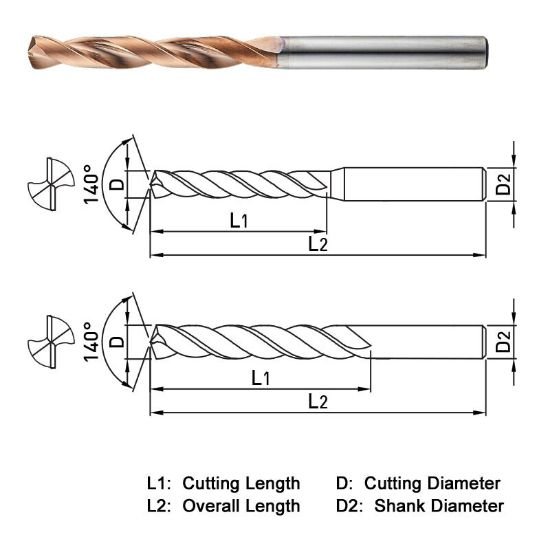

Picture of Widin PF5051032 10.32mm Dia 140° Point 2 Flute 5XD Drill Carbide Non Coolant

Widin PF5051032 10.32mm Dia 140° Point 2 Flute 5XD Drill Carbide Non Coolant

Part Number: WIDPF5051032
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$111.00
SKU: 1144805

Description

WIDIN PF5051032 Carbide Drill 10.32MM DIA 140° Point 2 Flute 5XD Drill Solid TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.5276 115.00MM
Flute Length 2.6770 68.00MM
Dia Deep 5.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.4331 11.00MM
Tool Dia 0.4062 10.32MM - 13/32
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.4063 10.32MM - 13/32
Cut Rating <60HRC Steel, Ductile Iron, Grey Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
