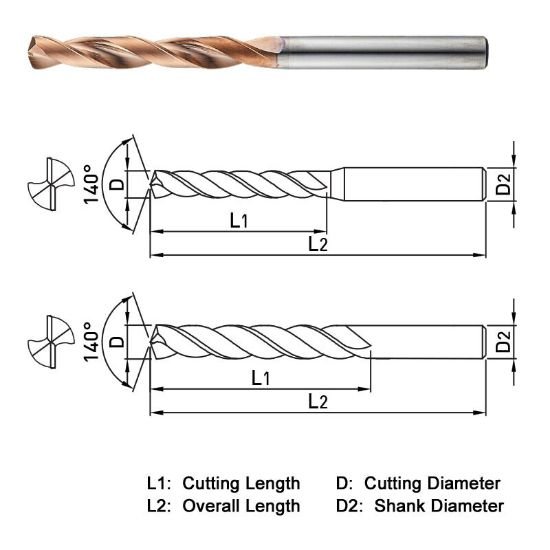

Picture of Widin PF50509129 9.129mm Dia 140° Point 2 Flute 5XD Drill Carbide Non Coolant

Widin PF50509129 9.129mm Dia 140° Point 2 Flute 5XD Drill Carbide Non Coolant

Part Number: WIDPF50509129
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$98.87
SKU: 1144790

Description

WIDIN PF50509129 Carbide Drill 9.129MM DIA 140° Point 2 Flute 5XD Drill Solid TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.1339 105.00MM
Flute Length 2.4410 62.00MM
Dia Deep 5.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.3937 10.00MM
Tool Dia 0.3594 9.13MM - 23/64
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.3594 9.13MM - 23/64
Cut Rating <60HRC Steel, Ductile Iron, Grey Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
