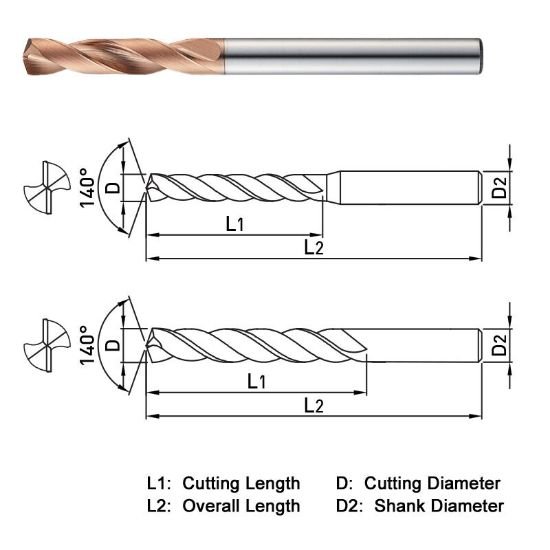

Picture of Widin PF503200 20.00mm Dia 140° Point 2 Flute 3XD Drill Carbide Non Coolant

Widin PF503200 20.00mm Dia 140° Point 2 Flute 3XD Drill Carbide Non Coolant

Part Number: WIDPF503200
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$337.16
SKU: 1144712

Description

WIDIN PF503200 Carbide Drill 20.00MM DIA 140° Point 2 Flute 3XD Drill Solid TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 5.1575 131.00MM
Flute Length 2.7560 70.00MM
Dia Deep 3.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.7874 20.00MM
Tool Dia 0.7874 20.00MM
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.7874 20.00MM
Cut Rating <60HRC Steel, Ductile Iron, Grey Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
