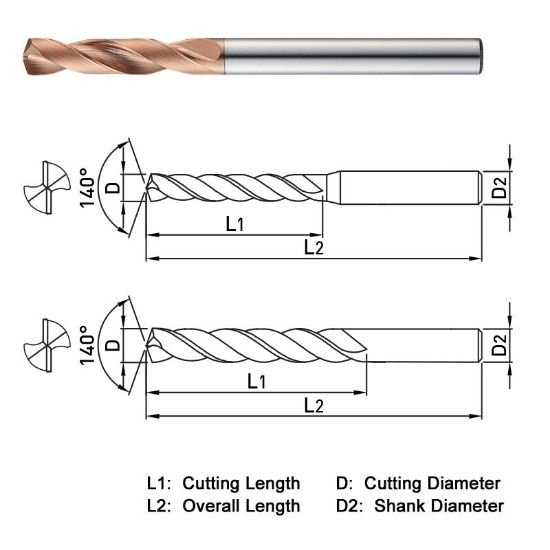

Widin PF503195 19.50mm Dia 140° Point 2 Flute 3XD Drill

Part Number: WIDPF503195

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1144710
$508.54
WIDIN PF503195 Carbide Drill 19.50MM DIA 140° POINT 2 FLUTE 3XD DRILL Solid TiAlN + HH Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Grey Iron, <60HRC Steel, Ductile Iron
Coating TiAlN + HH
Mach Side Connection Size 0.7874 20.00MM
Overall Length 5.1575 131.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 2
Tool Dia 0.7677 19.50MM
Type Of Tool Drill
Included Angle 140°
Flute Length 2.7560 70.00MM
Cut Dia Min 0.7676 19.50MM
Dia Deep 3.0x Dia
