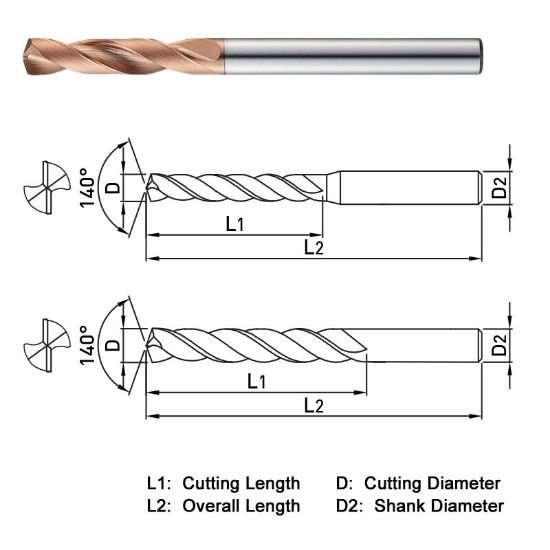

Widin PF503182 18.20mm Dia 140° Point 2 Flute 3XD Drill
Widin PF503182 18.20mm Dia 140° Point 2 Flute 3XD Drill
Part Number: WIDPF503182
Need Assistance or Service? Please call 262-251-4020
Manufacturer:
WIDIN
SKU:
1144705
Vendor:
Sussex Tool and Supply
$468.39
Qty:
Add to cart
Add to My List
Add to compare list
Email a friend
Share This:
WIDIN PF503182 Carbide Drill 18.20MM DIA 140° POINT 2 FLUTE 3XD DRILL Solid TiAlN + HH Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name
Attribute value
Shipping State
ILLINOIS
Made In USA
NO
Cutter Type
Carbide Drill
Tool Material
Carbide
Cutting Edge Mat
Carbide
Machine Side Connection Type
Cylindrical
Cut Rating
Stainless Steel, Grey Iron, <60HRC Steel, Ductile Iron
Coating
TiAlN + HH
Mach Side Connection Size
0.7480 19.00MM
Overall Length
5.0000 127.00MM
Coolant Thru
Non Coolant
Shank/Pilot Dia
0.7480 19.00MM
Flutes/Inserts
2
Tool Dia
0.7165 18.20MM
Type Of Tool
Drill
Included Angle
140°
Flute Length
2.7560 70.00MM
Cut Dia Min
0.7165 18.20MM
Dia Deep
3.0x Dia
