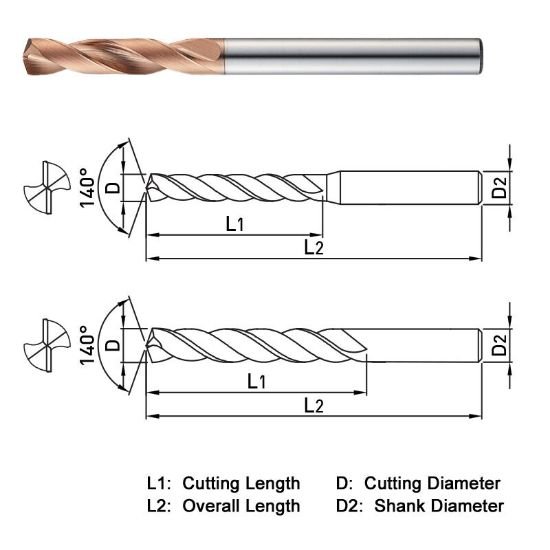

Picture of Widin PF50316667 16.667mm Dia 140° Point 2 Flute 3XD Drill Carbide Non Coolant

Widin PF50316667 16.667mm Dia 140° Point 2 Flute 3XD Drill Carbide Non Coolant

Part Number: WIDPF50316667
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$218.97
SKU: 1144695

Description

WIDIN PF50316667 Carbide Drill 16.667MM DIA 140° Point 2 Flute 3XD Drill Solid TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.6850 119.00MM
Flute Length 2.5980 65.99MM
Dia Deep 3.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.6692 17.00MM
Tool Dia 0.6563 16.67MM - 21/32
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.6562 16.67MM - 21/32
Cut Rating <60HRC Steel, Ductile Iron, Grey Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
