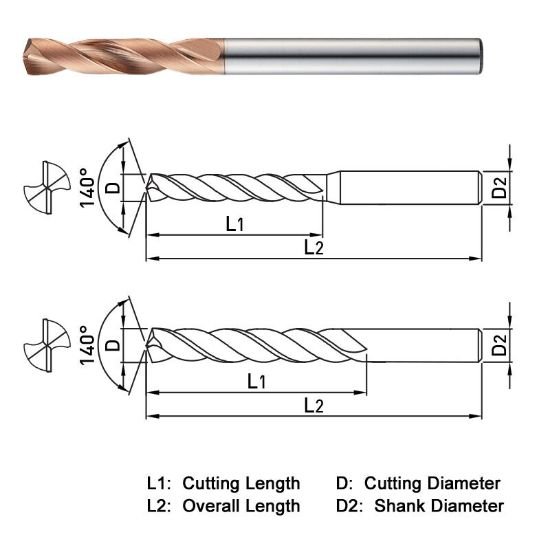

Picture of Widin PF503145 14.50mm Dia 140° Point 2 Flute 3XD Drill Carbide Non Coolant

Widin PF503145 14.50mm Dia 140° Point 2 Flute 3XD Drill Carbide Non Coolant

Part Number: WIDPF503145
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$161.96
SKU: 1144676

Description

WIDIN PF503145 Carbide Drill 14.50MM DIA 140° Point 2 Flute 3XD Drill Solid TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.3701 111.00MM
Shank/Pilot Dia 0.5906 15.00MM
Flutes/Inserts 2
Tool Dia 0.5709 14.50MM
Flute Length 2.4410 62.00MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Stainless Steel, <60HRC Steel, Ductile Iron, Grey Iron
Cut Dia Min 0.5709 14.50MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN + HH
