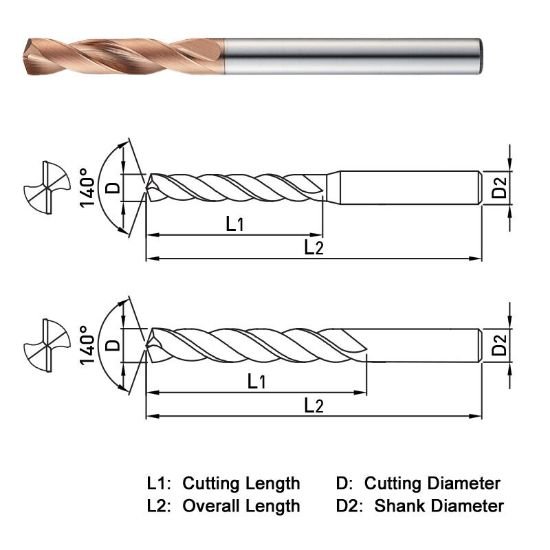

Picture of Widin PF50313891 13.891mm Dia 140° Point 2 Flute 3XD Drill Carbide Non Coolant

Widin PF50313891 13.891mm Dia 140° Point 2 Flute 3XD Drill Carbide Non Coolant

Part Number: WIDPF50313891
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$141.71
SKU: 1144668

Description

WIDIN PF50313891 Carbide Drill 13.891MM DIA 140° Point 2 Flute 3XD Drill Solid TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.2126 107.00MM
Flute Length 2.3620 59.99MM
Dia Deep 3.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.5512 14.00MM
Tool Dia 0.5469 13.89MM - 35/64
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.5469 13.89MM - 35/64
Cut Rating <60HRC Steel, Ductile Iron, Grey Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
