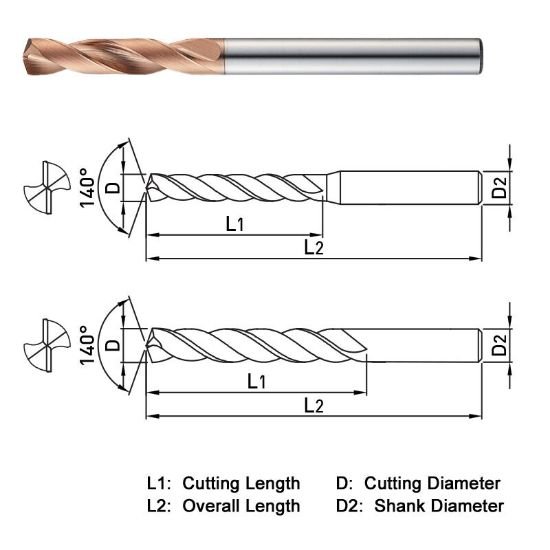

Picture of Widin PF503124 12.40mm Dia 140° Point 2 Flute 3XD Drill Carbide Non Coolant

Widin PF503124 12.40mm Dia 140° Point 2 Flute 3XD Drill Carbide Non Coolant

Part Number: WIDPF503124
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$128.23
SKU: 1144651

Description

WIDIN PF503124 Carbide Drill 12.40MM DIA 140° Point 2 Flute 3XD Drill Solid TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.0157 102.00MM
Flute Length 2.2440 57.00MM
Dia Deep 3.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.5118 13.00MM
Tool Dia 0.4882 12.40MM
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.4882 12.40MM
Cut Rating <60HRC Steel, Ductile Iron, Grey Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
