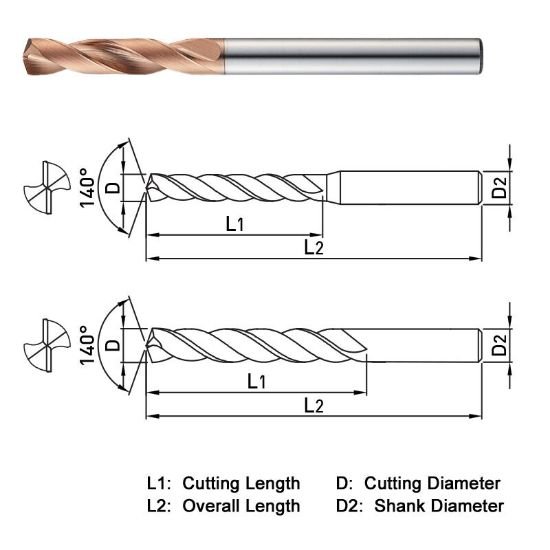

Picture of Widin PF503047 4.70mm Dia 140° Point 2 Flute 3XD Drill Carbide Non Coolant

Widin PF503047 4.70mm Dia 140° Point 2 Flute 3XD Drill Carbide Non Coolant

Part Number: WIDPF503047
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$35.61
SKU: 1144555

Description

WIDIN PF503047 Carbide Drill 4.70MM DIA 140° Point 2 Flute 3XD Drill Solid TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 2.4409 62.00MM
Flute Length 1.0240 26.01MM
Dia Deep 3.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.1969 5.00MM
Tool Dia 0.1850 4.70MM - #13
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.1850 4.70MM - #13
Cut Rating <60HRC Steel, Ductile Iron, Grey Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
