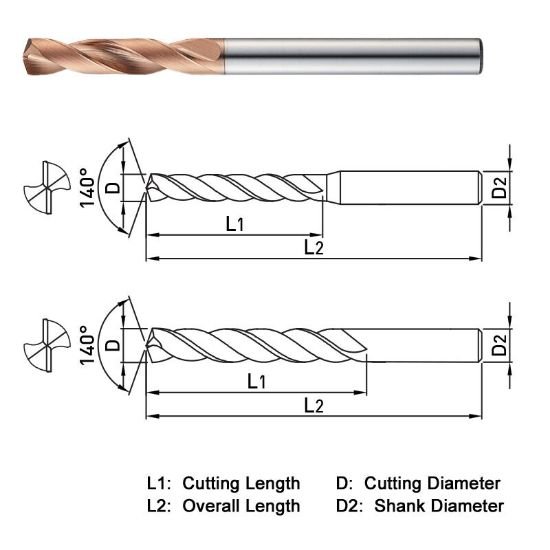

Picture of Widin PF50303572 3.572mm Dia 140° Point 2 Flute 3XD Drill Carbide Non Coolant

Widin PF50303572 3.572mm Dia 140° Point 2 Flute 3XD Drill Carbide Non Coolant

Part Number: WIDPF50303572
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$31.24
SKU: 1144542

Description

WIDIN PF50303572 Carbide Drill 3.572MM DIA 140° Point 2 Flute 3XD Drill Solid TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 2.3622 60.00MM
Flute Length 0.8660 22.00MM
Dia Deep 3.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.1574 4.00MM
Tool Dia 0.1406 3.57MM - 9/64 - #28
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.1406 3.57MM - 9/64 - #28
Cut Rating <60HRC Steel, Ductile Iron, Grey Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
