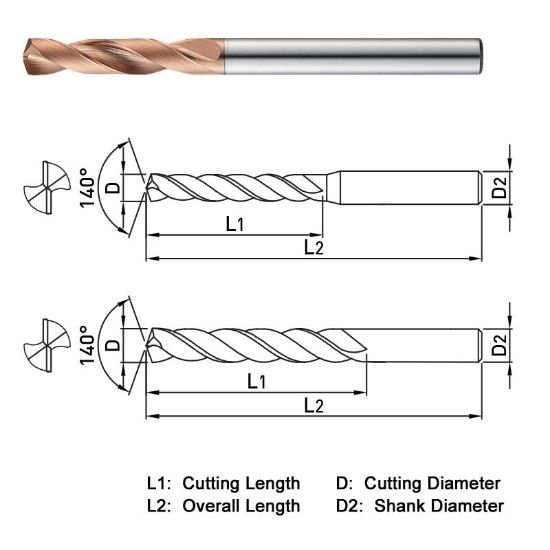

Picture of Widin PF503035 3.50mm Dia 140° Point 2 Flute 3XD Drill Carbide Non Coolant

Widin PF503035 3.50mm Dia 140° Point 2 Flute 3XD Drill Carbide Non Coolant

Part Number: WIDPF503035
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$31.24
SKU: 1144541

Description

WIDIN PF503035 Carbide Drill 3.50MM DIA 140° Point 2 Flute 3XD Drill Solid TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 2.3622 60.00MM
Shank/Pilot Dia 0.1574 4.00MM
Flutes/Inserts 2
Tool Dia 0.1378 3.50MM
Flute Length 0.8660 22.00MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Stainless Steel, <60HRC Steel, Ductile Iron, Grey Iron
Cut Dia Min 0.1378 3.50MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN + HH
