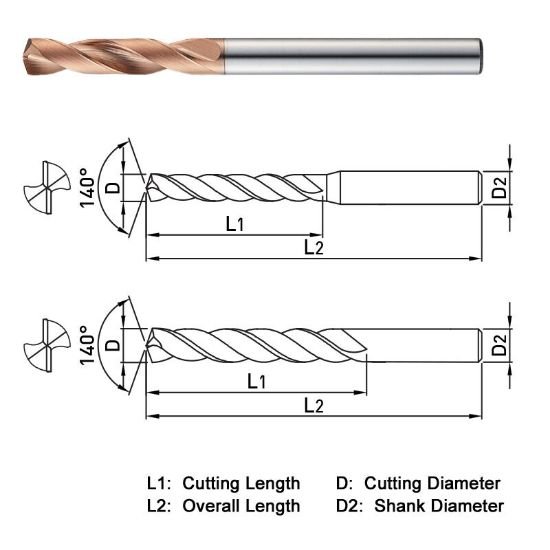

Widin PF50303264 3.264mm Dia 140° Point 2 Flute 3XD Drill Carbide Non Coolant

Part Number: WIDPF50303264
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$31.24
SKU: 1144538

Description

WIDIN PF50303264 Carbide Drill 3.264MM DIA 140° Point 2 Flute 3XD Drill Solid TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 2.3622 60.00MM
Flute Length 0.7870 19.99MM
Dia Deep 3.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.1574 4.00MM
Tool Dia 0.1285 3.26MM - #30
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.1285 3.26MM - #30
Cut Rating <60HRC Steel, Ductile Iron, Grey Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
