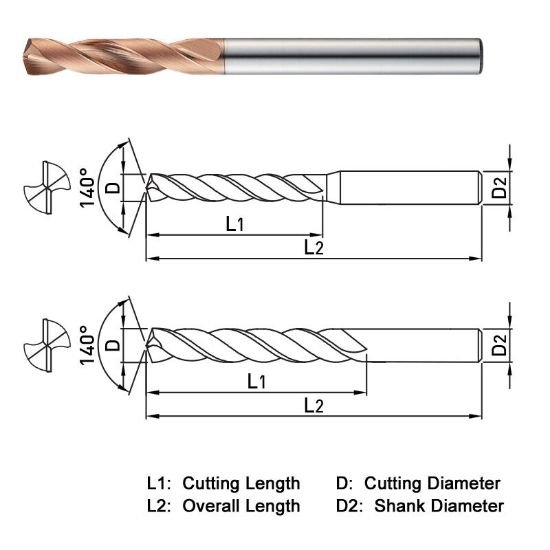

Widin PF503025 2.50mm Dia 140° Point 2 Flute 3XD Drill Carbide Non Coolant

Part Number: WIDPF503025
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$31.24
SKU: 1144529

Description

WIDIN PF503025 Carbide Drill 2.50MM DIA 140° Point 2 Flute 3XD Drill Solid TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 1.9685 50.00MM
Shank/Pilot Dia 0.1181 3.00MM
Flutes/Inserts 2
Tool Dia 0.0984 2.50MM
Flute Length 0.5510 14.00MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Stainless Steel, <60HRC Steel, Ductile Iron, Grey Iron
Cut Dia Min 0.0984 2.50MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN + HH
