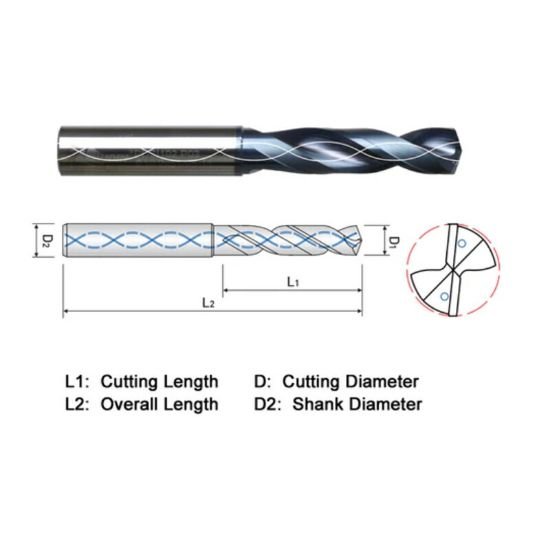

Picture of Widin PDSI115 11.50mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Widin PDSI115 11.50mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Part Number: WIDPDSI115
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$126.49
SKU: 1142366

Description

WIDIN PDSI115 Carbide Drill 11.50MM DIA 140° Point 2 Flute 3XD Drill Coolant Thru TiAlN
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.0157 102.00MM
Flute Length 2.1260 54.00MM
Dia Deep 3.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.4724 12.00MM
Tool Dia 0.4528 11.50MM
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.4528 11.50MM
Cut Rating <53HRC Steel, Ductile Iron, Gray Iron
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN
Tool Material Carbide
