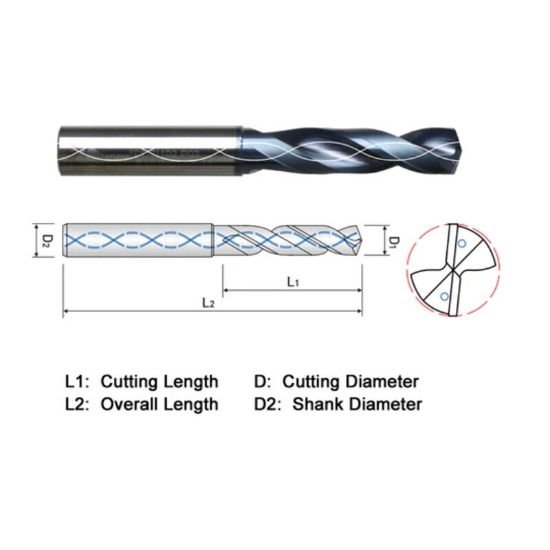

Picture of Widin PDSI104 10.40mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Widin PDSI104 10.40mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Part Number: WIDPDSI104
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$113.46
SKU: 1142355

Description

WIDIN PDSI104 Carbide Drill 10.40MM DIA 140° Point 2 Flute 3XD Drill Coolant Thru TiAlN
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 3.7400 95.00MM
Flute Length 2.0080 51.00MM
Dia Deep 3.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.4331 11.00MM
Tool Dia 0.4094 10.40MM
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.4094 10.40MM
Cut Rating <53HRC Steel, Ductile Iron, Gray Iron
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN
Tool Material Carbide
