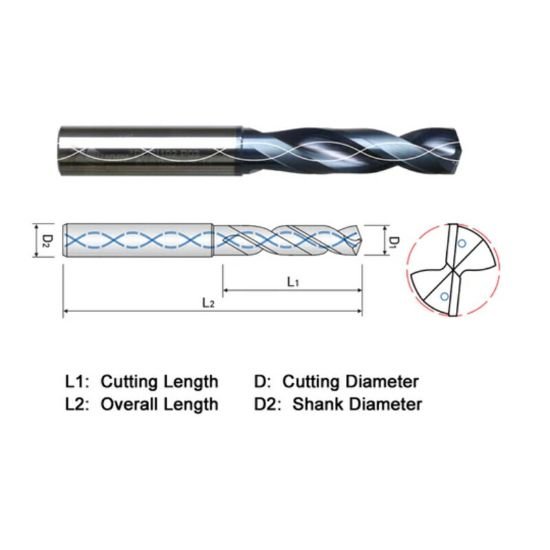

Picture of Widin PDSI101 10.10mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Widin PDSI101 10.10mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Part Number: WIDPDSI101
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$113.46
SKU: 1142352

Description

WIDIN PDSI101 Carbide Drill 10.10MM DIA 140° Point 2 Flute 3XD Drill Coolant Thru TiAlN
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 3.7400 95.00MM
Shank/Pilot Dia 0.4331 11.00MM
Flutes/Inserts 2
Tool Dia 0.3976 10.10MM
Flute Length 2.0080 51.00MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Gray Iron, <53HRC Steel, Ductile Iron
Cut Dia Min 0.3976 10.10MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
