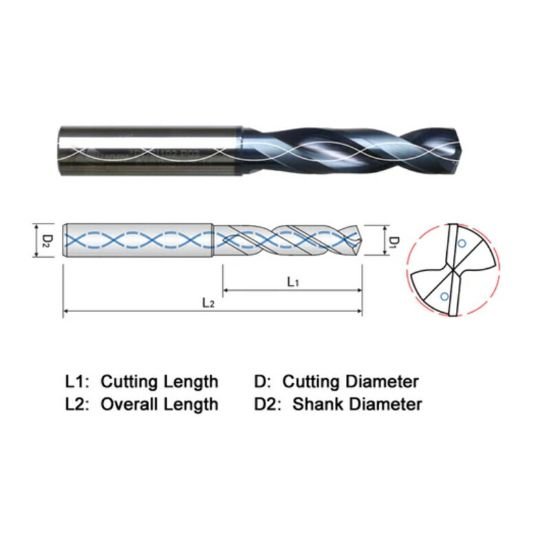

Picture of Widin PDSI096 9.60mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Widin PDSI096 9.60mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Part Number: WIDPDSI096
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$93.90
SKU: 1142347

Description

WIDIN PDSI096 Carbide Drill 9.60MM DIA 140° Point 2 Flute 3XD Drill Coolant Thru TiAlN
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 3.5039 89.00MM
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 2
Tool Dia 0.3780 9.60MM
Flute Length 1.8500 46.99MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Gray Iron, <53HRC Steel, Ductile Iron
Cut Dia Min 0.3780 9.60MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
