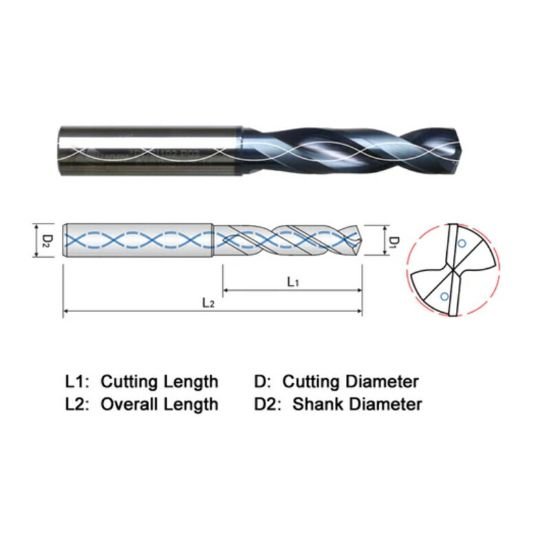

Picture of Widin PDSI092 9.20mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Widin PDSI092 9.20mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Part Number: WIDPDSI092
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$93.90
SKU: 1142343

Description

WIDIN PDSI092 Carbide Drill 9.20MM DIA 140° Point 2 Flute 3XD Drill Coolant Thru TiAlN
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 3.5039 89.00MM
Flute Length 1.8500 46.99MM
Dia Deep 3.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.3937 10.00MM
Tool Dia 0.3622 9.20MM
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.3622 9.20MM
Cut Rating <53HRC Steel, Ductile Iron, Gray Iron
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN
Tool Material Carbide
