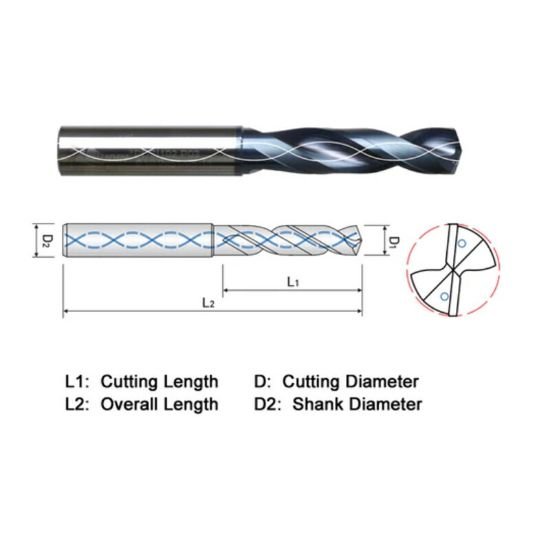

Picture of Widin PDSI074 7.40mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Widin PDSI074 7.40mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Part Number: WIDPDSI074
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$65.20
SKU: 1142325

Description

WIDIN PDSI074 Carbide Drill 7.40MM DIA 140° Point 2 Flute 3XD Drill Coolant Thru TiAlN
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 3.1102 79.00MM
Flute Length 1.5750 40.01MM
Dia Deep 3.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.3150 8.00MM
Tool Dia 0.2913 7.40MM
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.2913 7.40MM
Cut Rating <53HRC Steel, Ductile Iron, Gray Iron
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN
Tool Material Carbide
