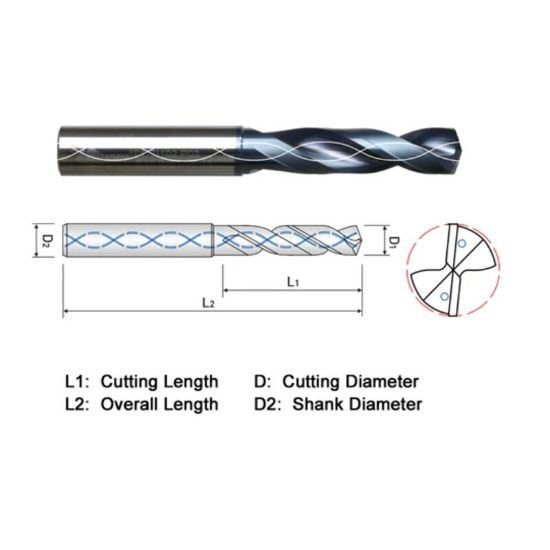

Picture of Widin PDSI068 6.80mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Widin PDSI068 6.80mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Part Number: WIDPDSI068
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$56.09
SKU: 1142319

Description

WIDIN PDSI068 Carbide Drill 6.80MM DIA 140° Point 2 Flute 3XD Drill Coolant Thru TiAlN
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 2.9528 75.00MM
Flute Length 1.4570 37.01MM
Dia Deep 3.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.2756 7.00MM
Tool Dia 0.2677 6.80MM
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.2677 6.80MM
Cut Rating <53HRC Steel, Ductile Iron, Gray Iron
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN
Tool Material Carbide
