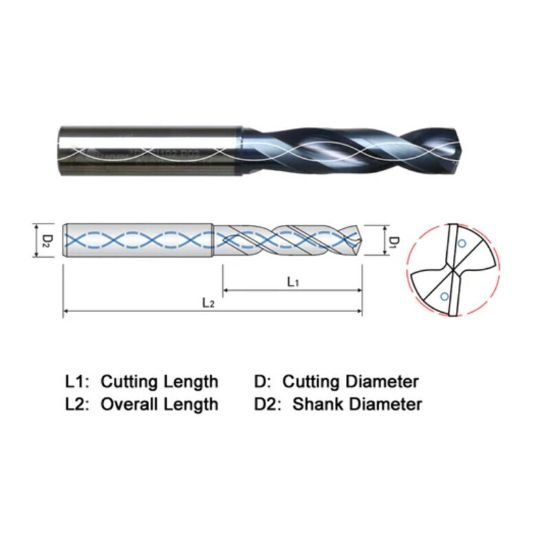

Picture of Widin PDSI063 6.30mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Widin PDSI063 6.30mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Part Number: WIDPDSI063
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$56.09
SKU: 1142314

Description

WIDIN PDSI063 Carbide Drill 6.30MM DIA 140° Point 2 Flute 3XD Drill Coolant Thru TiAlN
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 2.9528 75.00MM
Shank/Pilot Dia 0.2756 7.00MM
Flutes/Inserts 2
Tool Dia 0.2480 6.30MM
Flute Length 1.3390 34.01MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Gray Iron, <53HRC Steel, Ductile Iron
Cut Dia Min 0.2480 6.30MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
