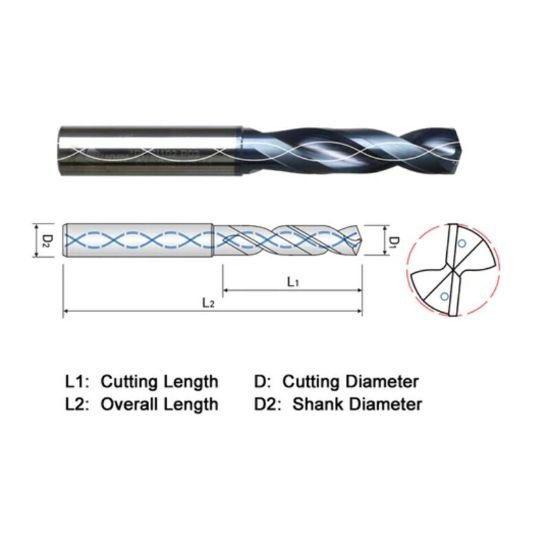

Picture of Widin PDSI059 5.90mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Widin PDSI059 5.90mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Part Number: WIDPDSI059
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$46.96
SKU: 1142310

Description

WIDIN PDSI059 Carbide Drill 5.90MM DIA 140° Point 2 Flute 3XD Drill Coolant Thru TiAlN
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 2.5984 66.00MM
Flute Length 1.1810 30.00MM
Dia Deep 3.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.2362 6.00MM
Tool Dia 0.2323 5.90MM
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.2323 5.90MM
Cut Rating <53HRC Steel, Ductile Iron, Gray Iron
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN
Tool Material Carbide
