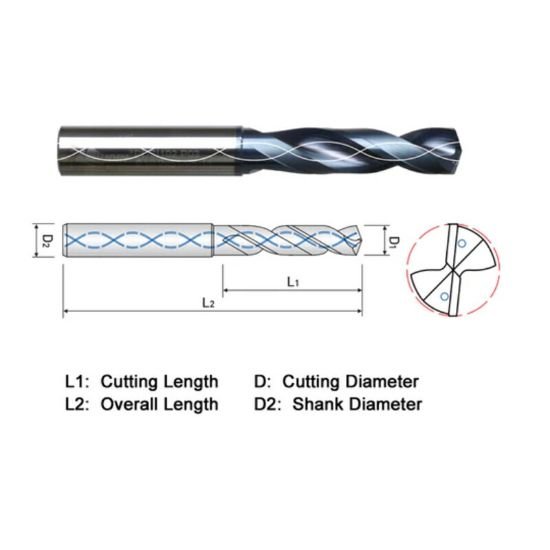

Picture of Widin PDSI038 3.80mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Widin PDSI038 3.80mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Part Number: WIDPDSI038
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$46.96
SKU: 1142289

Description

WIDIN PDSI038 Carbide Drill 3.80MM DIA 140° Point 2 Flute 3XD Drill Coolant Thru TiAlN
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 2.4409 62.00MM
Flute Length 0.9450 24.00MM
Dia Deep 3.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.1574 4.00MM
Tool Dia 0.1495 3.80MM - #25
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.1496 3.80MM - #25
Cut Rating <53HRC Steel, Ductile Iron, Gray Iron
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN
Tool Material Carbide
