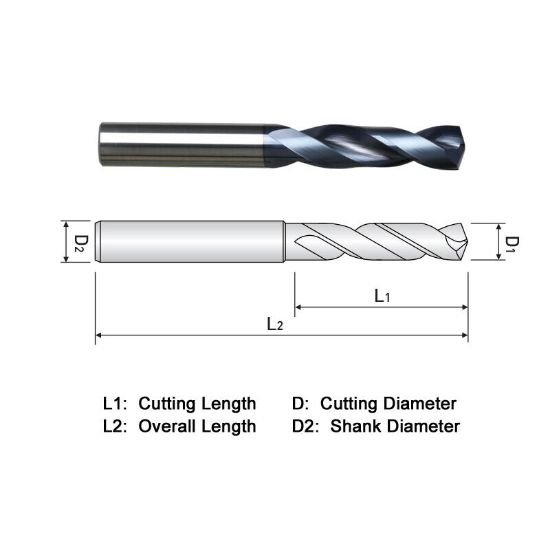

Picture of Widin PDS191 19.10mm Dia 140° Point 2 Flute 3XD Drill Carbide Non Coolant

Widin PDS191 19.10mm Dia 140° Point 2 Flute 3XD Drill Carbide Non Coolant

Part Number: WIDPDS191
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$278.00
SKU: 1144519

Description

WIDIN PDS191 Carbide Drill 19.10MM DIA 140° Point 2 Flute 3XD Drill Solid TiAlN
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 5.1575 131.00MM
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 2
Tool Dia 0.7520 19.10MM
Flute Length 2.7560 70.00MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Gray Iron, <53HRC Steel, Ductile Iron
Cut Dia Min 0.7519 19.10MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
