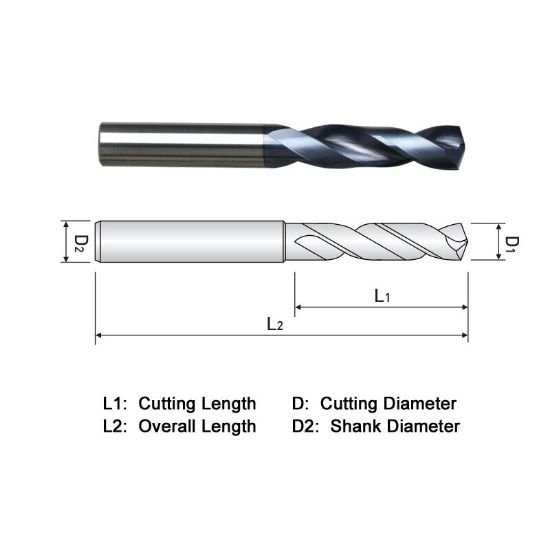

Picture of Widin PDS111 11.10mm Dia 140° Point 2 Flute 3XD Drill Carbide Non Coolant

Widin PDS111 11.10mm Dia 140° Point 2 Flute 3XD Drill Carbide Non Coolant

Part Number: WIDPDS111
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$91.81
SKU: 1144171

Description

WIDIN PDS111 Carbide Drill 11.10MM DIA 140° Point 2 Flute 3XD Drill Solid TiAlN
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.0157 102.00MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 2
Tool Dia 0.4370 11.10MM
Flute Length 2.1260 54.00MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Gray Iron, <53HRC Steel, Ductile Iron
Cut Dia Min 0.4370 11.10MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
