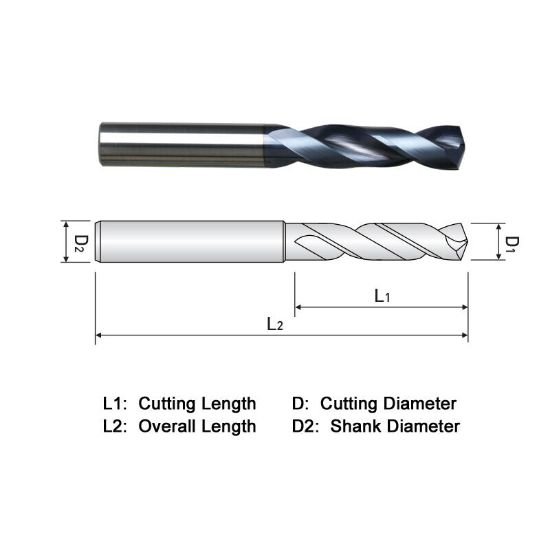

Picture of Widin PDS065 6.50mm Dia 140° Point 2 Flute 3XD Drill Carbide Non Coolant

Widin PDS065 6.50mm Dia 140° Point 2 Flute 3XD Drill Carbide Non Coolant

Part Number: WIDPDS065
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$47.43
SKU: 1144125

Description

WIDIN PDS065 Carbide Drill 6.50MM DIA 140° Point 2 Flute 3XD Drill Solid TiAlN
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 2.9134 74.00MM
Shank/Pilot Dia 0.2756 7.00MM
Flutes/Inserts 2
Tool Dia 0.2559 6.50MM
Flute Length 1.3390 34.01MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Gray Iron, <53HRC Steel, Ductile Iron
Cut Dia Min 0.2559 6.50MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
