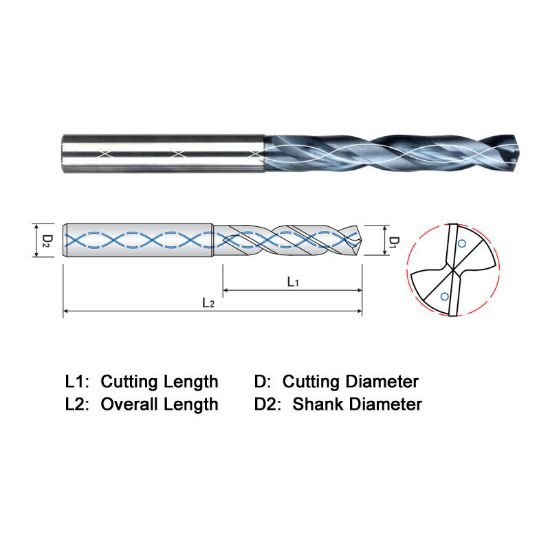

Picture of Widin PDMI096 9.60mm Dia 140° Point 2 Flute 5XD Drill Carbide Thru Coolant

Widin PDMI096 9.60mm Dia 140° Point 2 Flute 5XD Drill Carbide Thru Coolant

Part Number: WIDPDMI096
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$119.99
SKU: 1142092

Description

WIDIN PDMI096 Carbide Drill 9.60MM DIA 140° Point 2 Flute 5XD Drill Coolant Thru TiAlN
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.2520 108.00MM
Flute Length 2.4410 62.00MM
Dia Deep 5.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.3937 10.00MM
Tool Dia 0.3780 9.60MM
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.3780 9.60MM
Cut Rating <53HRC Steel, Ductile Iron, Gray Iron
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN
Tool Material Carbide
