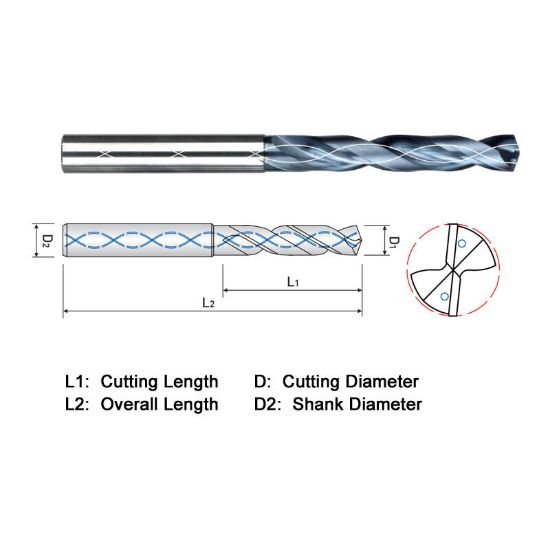

Picture of Widin PDMI084 8.40mm Dia 140° Point 2 Flute 5XD Drill Carbide Thru Coolant

Widin PDMI084 8.40mm Dia 140° Point 2 Flute 5XD Drill Carbide Thru Coolant

Part Number: WIDPDMI084
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$102.39
SKU: 1142080

Description

WIDIN PDMI084 Carbide Drill 8.40MM DIA 140° Point 2 Flute 5XD Drill Coolant Thru TiAlN
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.1339 105.00MM
Flute Length 2.2050 56.01MM
Dia Deep 5.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.3543 9.00MM
Tool Dia 0.3307 8.40MM
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.3307 8.40MM
Cut Rating <53HRC Steel, Ductile Iron, Gray Iron
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN
Tool Material Carbide
