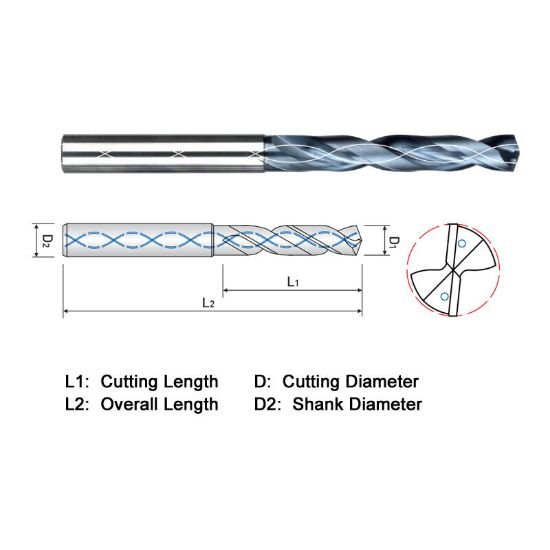

Picture of Widin PDMI054 5.40mm Dia 140° Point 2 Flute 5XD Drill Carbide Thru Coolant

Widin PDMI054 5.40mm Dia 140° Point 2 Flute 5XD Drill Carbide Thru Coolant

Part Number: WIDPDMI054
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$60.00
SKU: 1142050

Description

WIDIN PDMI054 Carbide Drill 5.40MM DIA 140° Point 2 Flute 5XD Drill Coolant Thru TiAlN
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 3.4252 87.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.2126 5.40MM
Flute Length 1.6930 43.00MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Gray Iron, <53HRC Steel, Ductile Iron
Cut Dia Min 0.2126 5.40MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
