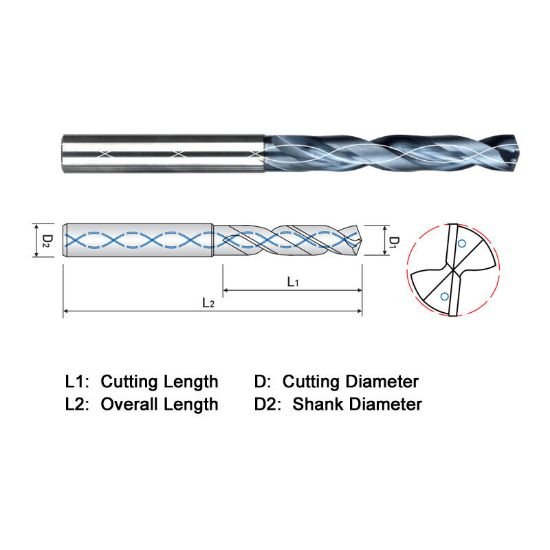

Picture of Widin PDMI047 4.70mm Dia 140° Point 2 Flute 5XD Drill Carbide Thru Coolant

Widin PDMI047 4.70mm Dia 140° Point 2 Flute 5XD Drill Carbide Thru Coolant

Part Number: WIDPDMI047
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$52.17
SKU: 1142043

Description

WIDIN PDMI047 Carbide Drill 4.70MM DIA 140° Point 2 Flute 5XD Drill Coolant Thru TiAlN
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 3.1496 80.00MM
Flute Length 1.4170 35.99MM
Dia Deep 5.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.1969 5.00MM
Tool Dia 0.1850 4.70MM - #13
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.1850 4.70MM - #13
Cut Rating <53HRC Steel, Ductile Iron, Gray Iron
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN
Tool Material Carbide
