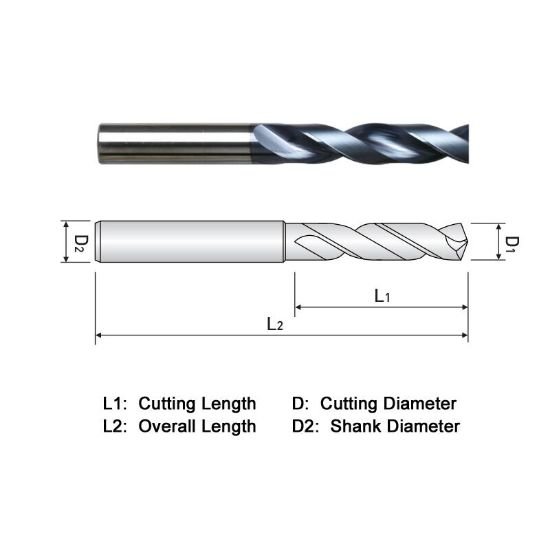

Widin PDM131 13.10mm Dia 140° Point 2 Flute 3XD Drill

Part Number: WIDPDM131

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1144024
$174.00
WIDIN PDM131 Carbide Drill 13.10MM DIA 140° POINT 2 FLUTE 3XD DRILL Solid TiAlN Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Gray Iron, <53HRC Steel, Ductile Iron
Coating TiAlN
Mach Side Connection Size 0.5512 14.00MM
Overall Length 5.2756 134.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5512 14.00MM
Flutes/Inserts 2
Tool Dia 0.5156 13.10MM - 33/64
Type Of Tool Drill
Included Angle 140°
Flute Length 3.1500 80.01MM
Cut Dia Min 0.5156 13.10MM - 33/64
Dia Deep 3.0x Dia
