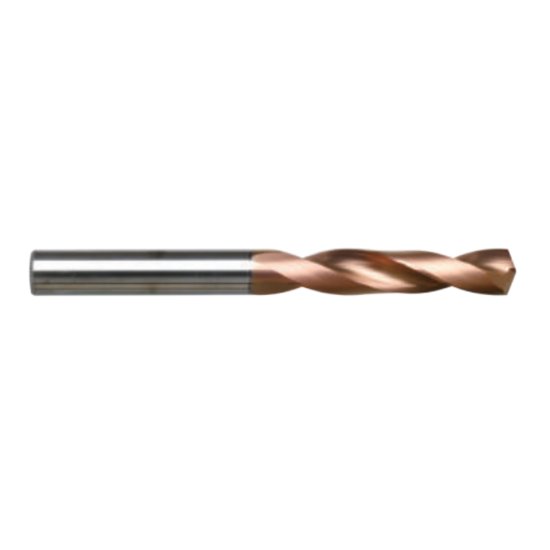

Picture of Widin P503A177 17.70mm Dia 140° Point 2 Flute 3XD Drill Carbide Non Coolant

Widin P503A177 17.70mm Dia 140° Point 2 Flute 3XD Drill Carbide Non Coolant

Part Number: WIDP503A177
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$237.61
SKU: 1142668

Description

WIDIN P503A177 Carbide Drill 17.70MM DIA 140° Point 2 Flute 3XD Drill Solid TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.8425 123.00MM
Shank/Pilot Dia 0.7087 18.00MM
Flutes/Inserts 2
Tool Dia 0.6969 17.70MM
Flute Length 2.0080 51.00MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Stainless Steel, <60HRC Steel, Ductile Iron, Grey Iron
Cut Dia Min 0.6968 17.70MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN + HH
