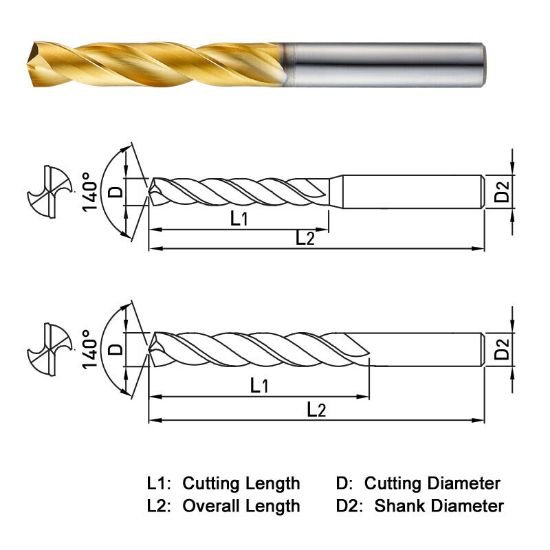

Picture of Widin NDPR170 17.00mm Dia 140° Point 2 Flute 5.5-7.5XD Drill Carbide Non Coolant

Widin NDPR170 17.00mm Dia 140° Point 2 Flute 5.5-7.5XD Drill Carbide Non Coolant

Part Number: WIDNDPR170
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$150.24
SKU: 1145346

Description

WIDIN NDPR170 Carbide Drill 17.00MM DIA 140° Point 2 Flute 5.5-7.5XD Drill Solid PVD
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.6850 119.00MM
Flute Length 2.7950 70.99MM
Dia Deep 5.5.0x Dia - 7.5.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.6692 17.00MM
Tool Dia 0.6693 17.00MM
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.6692 17.00MM
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Materials & Finish
Cutting Edge Mat Carbide
Coating PVD
Tool Material Carbide
