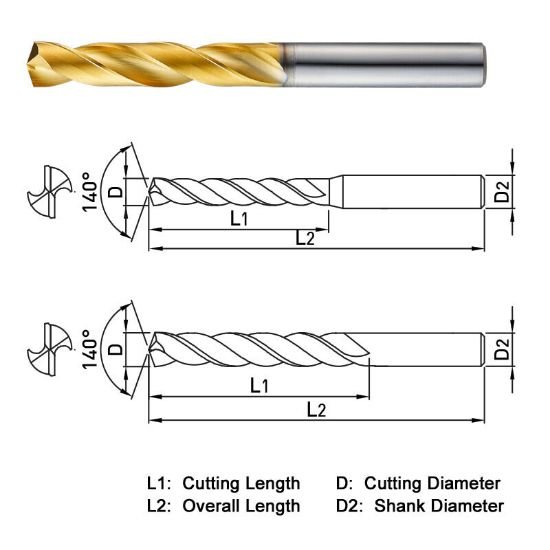

Widin NDPR054 5.40mm Dia 140° Point 2 Flute 5.5-7.5XD Drill Carbide Non Coolant

Part Number: WIDNDPR054
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$32.77
SKU: 1145237

Description

WIDIN NDPR054 Carbide Drill 5.40MM DIA 140° Point 2 Flute 5.5-7.5XD Drill Solid PVD
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 2.5984 66.00MM
Flute Length 1.4170 35.99MM
Dia Deep 5.5.0x Dia - 7.5.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.2362 6.00MM
Tool Dia 0.2126 5.40MM
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.2126 5.40MM
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Materials & Finish
Cutting Edge Mat Carbide
Coating PVD
Tool Material Carbide
