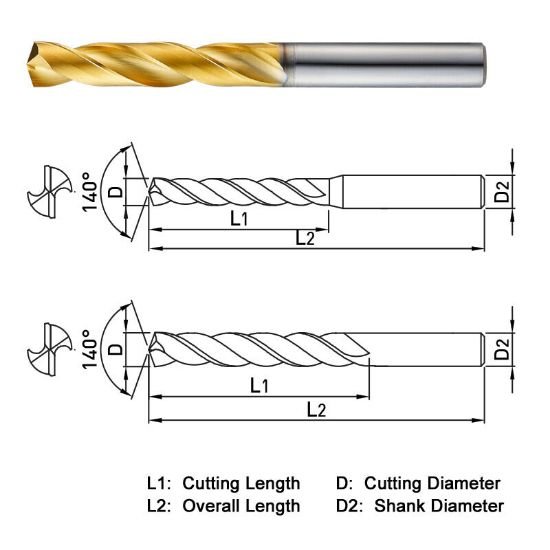

Picture of Widin NDPR047 4.70mm Dia 140° Point 2 Flute 5.5-7.5XD Drill Carbide Non Coolant

Widin NDPR047 4.70mm Dia 140° Point 2 Flute 5.5-7.5XD Drill Carbide Non Coolant

Part Number: WIDNDPR047
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$26.87
SKU: 1145230

Description

WIDIN NDPR047 Carbide Drill 4.70MM DIA 140° Point 2 Flute 5.5-7.5XD Drill Solid PVD
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 2.4803 63.00MM
Flute Length 1.2990 32.99MM
Dia Deep 5.5.0x Dia - 7.5.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.1969 5.00MM
Tool Dia 0.1850 4.70MM - #13
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.1850 4.70MM - #13
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Materials & Finish
Cutting Edge Mat Carbide
Coating PVD
Tool Material Carbide
