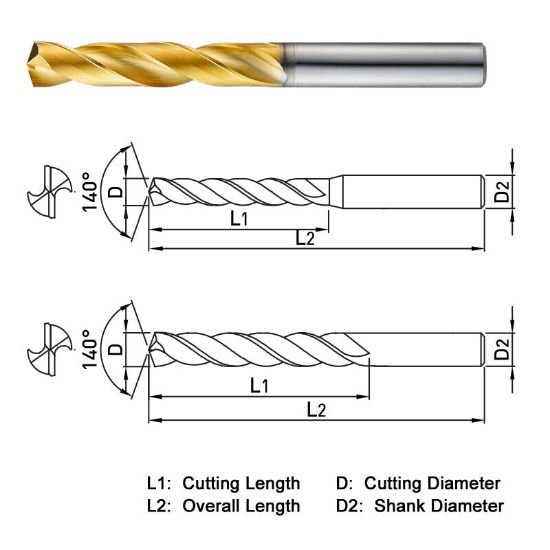

Picture of Widin NDPR010 1.00mm Dia 140° Point 2 Flute 5.5-7.5XD Drill

Widin NDPR010 1.00mm Dia 140° Point 2 Flute 5.5-7.5XD Drill

Part Number: WIDNDPR010 0.039 x 0.118 x 0.315 x 1.496

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1145193
Vendor: Sussex Tool and Supply
$24.84
WIDIN NDPR010 Carbide Drill 1.00MM DIA 140° POINT 2 FLUTE 5.5-7.5XD DRILL Solid PVD Carbide
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Gray Iron, <40HRC Steel, Ductile Iron
Coating PVD
Mach Side Connection Size 0.1181 3.00MM
Overall Length 1.4961 38.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1181 3.00MM
Flutes/Inserts 2
Tool Dia 0.0394 1.00MM
Type Of Tool Drill
Length Of Cut 0.3150 8.00MM
Included Angle 140°
Flute Length 0.3150 8.00MM
Cut Dia Min 0.0394 1.00MM
Dia Deep 5.5.0x Dia - 7.5.0x Dia
