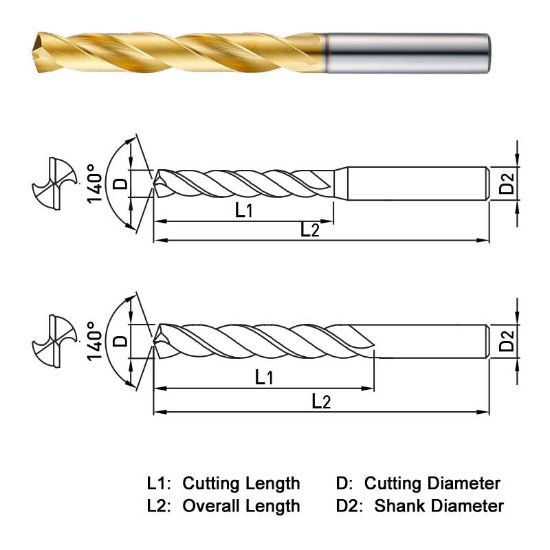

Picture of Widin NDPL177 17.70mm Dia 140° Point 2 Flute 5.5-7.5XD Drill Carbide Non Coolant

Widin NDPL177 17.70mm Dia 140° Point 2 Flute 5.5-7.5XD Drill Carbide Non Coolant

Part Number: WIDNDPL177
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$263.87
SKU: 1145488

Description

WIDIN NDPL177 Carbide Drill 17.70MM DIA 140° Point 2 Flute 5.5-7.5XD Drill Solid PVD
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 6.2992 160.00MM
Flute Length 4.4090 111.99MM
Dia Deep 5.5.0x Dia - 7.5.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.7087 18.00MM
Tool Dia 0.6969 17.70MM
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.6968 17.70MM
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Materials & Finish
Cutting Edge Mat Carbide
Coating PVD
Tool Material Carbide
