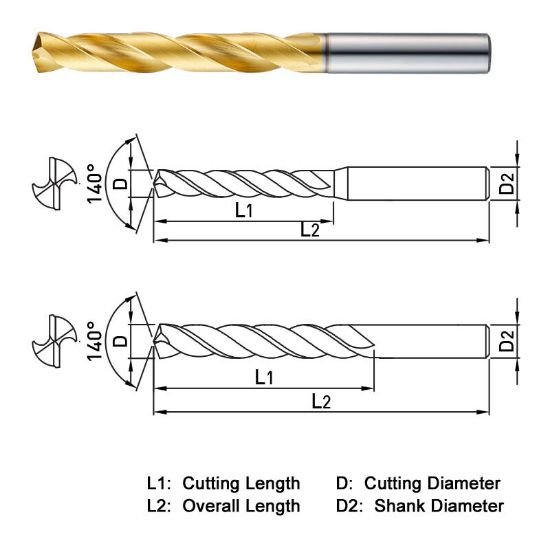

Picture of Widin NDPL143 14.30mm Dia 140° Point 2 Flute 5.5-7.5XD Drill Carbide Non Coolant

Widin NDPL143 14.30mm Dia 140° Point 2 Flute 5.5-7.5XD Drill Carbide Non Coolant

Part Number: WIDNDPL143
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$192.27
SKU: 1145466

Description

WIDIN NDPL143 Carbide Drill 14.30MM DIA 140° Point 2 Flute 5.5-7.5XD Drill Solid PVD
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 6.0236 153.00MM
Flute Length 3.9370 100.00MM
Dia Deep 5.5.0x Dia - 7.5.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.5906 15.00MM
Tool Dia 0.5630 14.30MM
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.5630 14.30MM
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Materials & Finish
Cutting Edge Mat Carbide
Coating PVD
Tool Material Carbide
