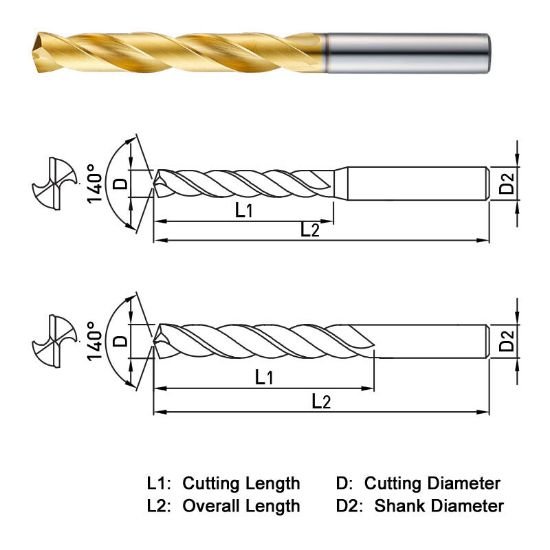

Picture of Widin NDPL141 14.10mm Dia 140° Point 2 Flute 5.5-7.5XD Drill Carbide Non Coolant

Widin NDPL141 14.10mm Dia 140° Point 2 Flute 5.5-7.5XD Drill Carbide Non Coolant

Part Number: WIDNDPL141
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$192.27
SKU: 1145464

Description

WIDIN NDPL141 Carbide Drill 14.10MM DIA 140° Point 2 Flute 5.5-7.5XD Drill Solid PVD
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 5.7874 147.00MM
Flute Length 3.7800 96.01MM
Dia Deep 5.5.0x Dia - 7.5.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.5906 15.00MM
Tool Dia 0.5551 14.10MM
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.5551 14.10MM
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Materials & Finish
Cutting Edge Mat Carbide
Coating PVD
Tool Material Carbide
