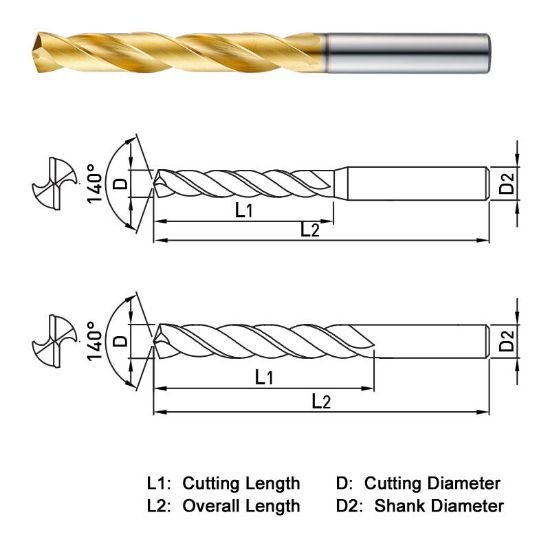

Picture of Widin NDPL131 13.10mm Dia 140° Point 2 Flute 5.5-7.5XD Drill Carbide Non Coolant

Widin NDPL131 13.10mm Dia 140° Point 2 Flute 5.5-7.5XD Drill Carbide Non Coolant

Part Number: WIDNDPL131
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$151.40
SKU: 1145454

Description

WIDIN NDPL131 Carbide Drill 13.10MM DIA 140° Point 2 Flute 5.5-7.5XD Drill Solid PVD
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 5.3937 137.00MM
Flute Length 3.5430 89.99MM
Dia Deep 5.5.0x Dia - 7.5.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.5512 14.00MM
Tool Dia 0.5156 13.10MM - 33/64
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.5156 13.10MM - 33/64
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Materials & Finish
Cutting Edge Mat Carbide
Coating PVD
Tool Material Carbide
